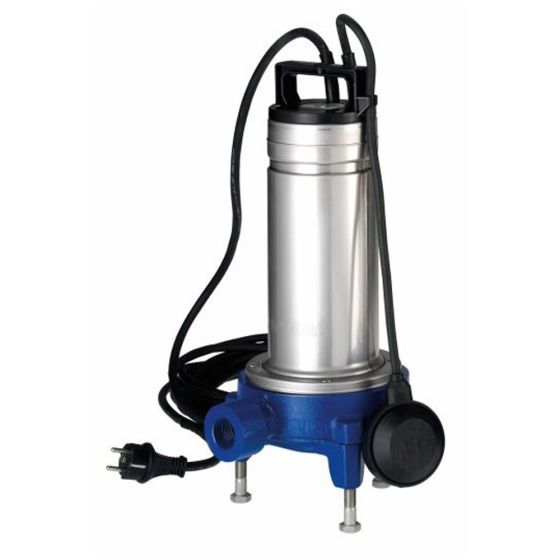

The Domo GRI 11-HF from Lowara is part of the Domo GRI range and comes as a submersible electric pump for drainage of dirty water, equipped with a grinder system.
The grinder is able to macerate all the solids present in the sewage and to pass it through small discharge pipes (25 mm diameter).
Single-phase (230/1/50)
With Float Switch
Part No: 107678531
1.1kW

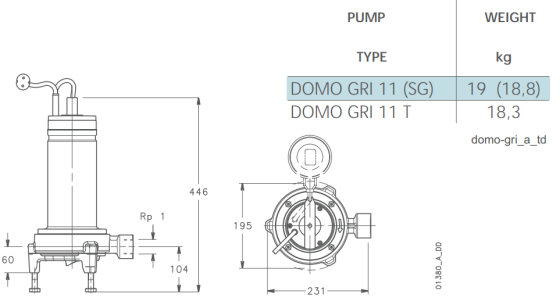

Weight: 19kg
Applications
Pumping of sewage with suspended solids.
Emptying of septic tanks and residential sumps.
Draining of flooded areas.
Pumping water from a pressurized sewer network.
Specifications
Maximum liquid temperature: 35°C with fully submerged pump.
Dry motor.
Power cord: H07RN-F - single-phase: with plug.
Insulation class 155°C (F).
IPX8 protection.
Maximum immersion depth: 5 m.
The single-phase versions feature:
Pre-assembled float switch pre-assembled float switch for automatic pump operation.
Built-in capacitor.
Thermal overload protection thermal overload protection to stop pump supply in case of overheating
