Klargester

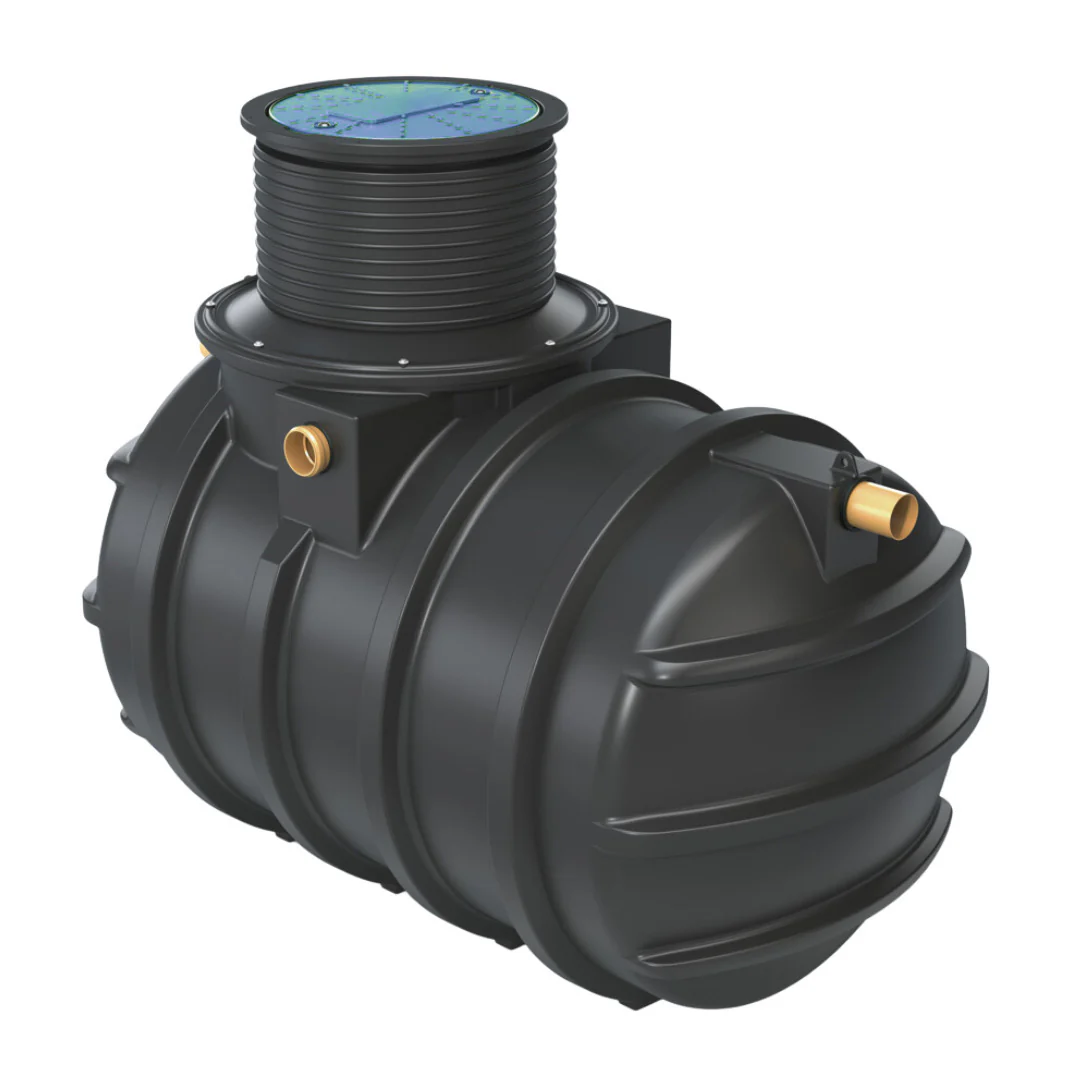

Clearwater BioAir CW2 Sewage Treatment System (up to 6 person)

Clearwater BioAir CW2 Sewage Treatment System (up to 6 person)

Regular price £1,556.00
Regular price £2,100.00 Sale price £1,556.00
Special Offer Sold out
Shipping calculated at checkout.

Prices are EX VAT unless stated otherwise

Discharge
Invert Depth Required
High Level Alarm

The Clearwater BioAir CW2 for 6 person applies aeration technology to elevate wastewater quality before discharge. Offering flexible installation, the Clearwater BioAir is designed to suit domestic dwellings with a low visual impact and is supplied as standard with an Isolator Switch and has a standard 12 months standard manufacturer’s warranty.

Please Note: BioAir CW2 lid is green, not blue.

Clearwater BioAir 2 Gravity Drawing

Clearwater BioAir 2 Pumped Drawing

Clearwater BioAir Blower & Duct Vent Drawing

Clearwater BioAir Extension Neck Fitting Instructions

Clearwater BioAir Installation & Operation Guidelines

Clearwater BioAir PIA Certificate


Clearwater BioAir CW2 (6 person) Features:

  • Suitable for shallow dig Installations
  • Suitable for use in traffic areas (structural design advice required)
  • Low level visibility
  • Improved effluent quality – BOD5 97.5%
  • Third party tested to EN 12566-3
  • Easy to install and operate
  • Supplied with isolator switch (High Level Alarm optional on IPS unit)
  • Affordable service plans available
  • Robust and Lightweight
  • 12 months warranty* (terms apply)

BioAir Applications:

  • Single & Multiple Homes
  • Light Industrial Premises
  • Small Offices
  • Farms
  • Barn Conversions

    BioAir

    Model

    BioAir CW2

    Population Equivalent Unit 6
    Daily Flow m3/d 0.9
    Daily Load kg BOD5/d 0.36
    Daily Flow Q10 m3/h 0.09

    Measurements

    Outlet invert mm 600-900
    Width mm na
    Diameter mm 1470
    Length mm 2250
    Installation depth mm 1800-1580
    Inlet invert mm 500-800
    Cover Height mm na
    Inlet pipe work* mm 110
    Outlet pipe work* mm 110
    Material Construction MDPE or GRP MDPE
    Unit Weight kg 200



    Max Inlet Invert Using:
    Gravity Units: Max Invert: 1400mm
    Pumped Units: Max Invert: 1000mm
    For Inverts from 755 - 1200mm  order 1 X riser
    For Inverts from 1200 - 1400mm order 2 X risers
