Pedrollo

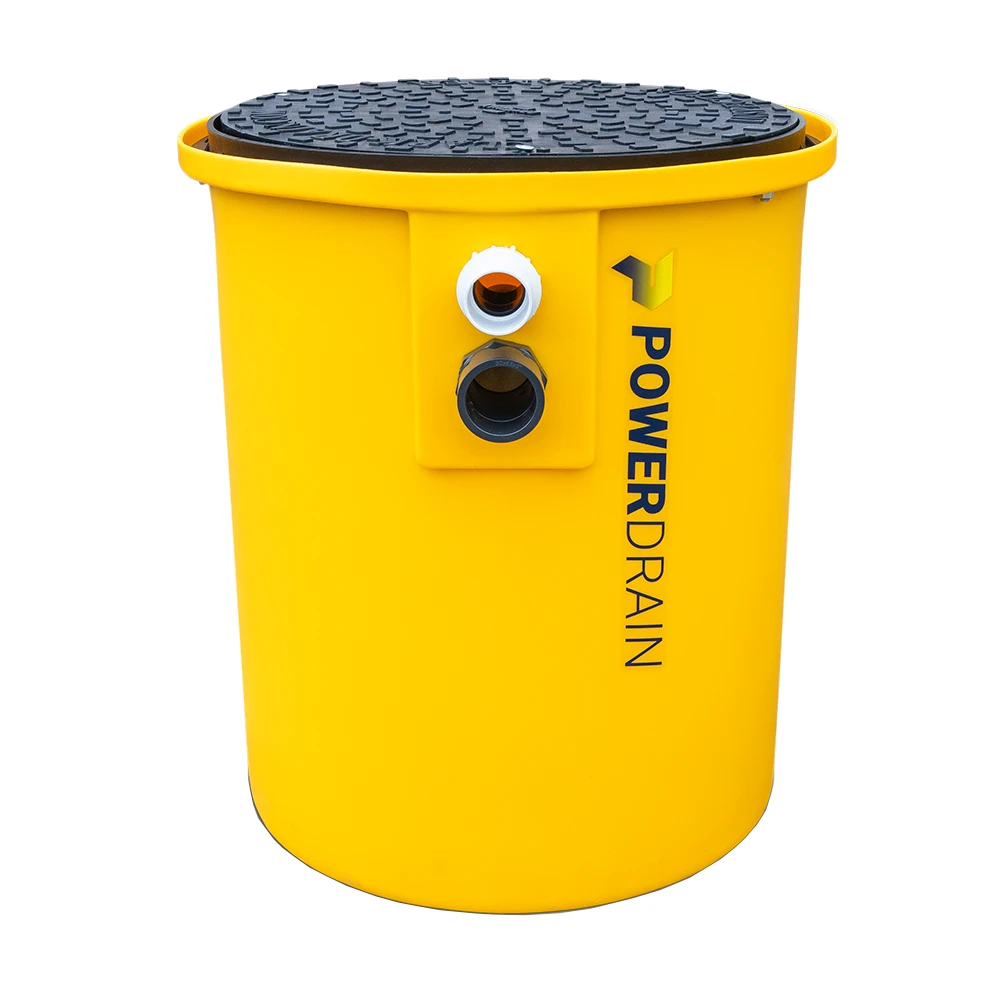

Pedrollo Powerdrain Mini Basement Single Pump Station for Clear Water 140ltr

Pedrollo Powerdrain Mini Basement Single Pump Station for Clear Water 140ltr

Regular price £550.00
Regular price Sale price £550.00
Special Offer Sold out
Shipping calculated at checkout.

Prices are EX VAT unless stated otherwise

The Mini basement packaged pump stations are designed to collect ground or rainwater and pump to drain when gravity flows are not possible.

Applications include drainage of nuisance water or surface water from basements and house extensions.

The Powerdrain range has been designed to ensure an easy and trouble-free installation.

PERFORMANCE RANGE
Flow rate up to 220 l/min (13.2m³/h) Head up to 9m
Passage of suspended solids up to Ø 10 mm

Key Features:

  • 140 Litre Sump Chamber
  • 450mm inspection chamber frame and lid

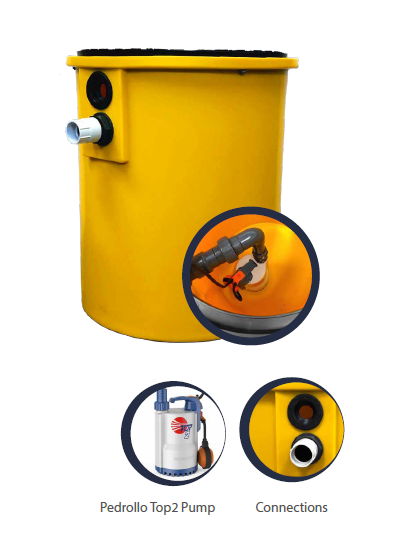

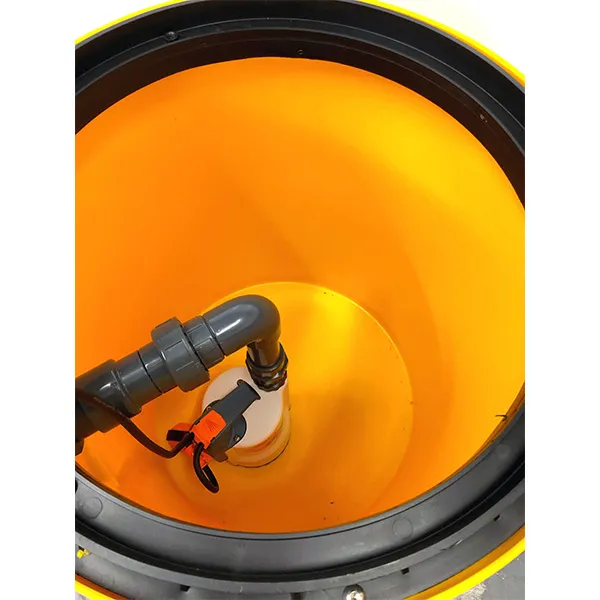

  • 1 x Pedrollo Top2 automatic pump with fully assembled discharge
    pipe work
  • Discharge hole in chamber pre-drilled
  • Inlet holes must be drilled

Optional Extras:

  • Basic Alarm Package
  • Premium Alarm Package

Specification:

  • Chamber Material: MDPE
  • Chamber Max Volume: 140 Litres
  • Non-return Valve: Quiet operation EDPM swing check valve
  • Discharge Connection: 1.5” BSP male 16 Bar (optional 40mm waste adaptor supplied)
  • Internal Pipework and fittings: All manufactured to EN1452-2/3, ISO161/1, BS21, DIN2999, ISO7 – Note threaded fittings are rated at 12 Bar.
  • Cable Duct Pipework: 1.5″ BSP Male 16 Bar fitting (optional 40mm waste adaptor supplied)

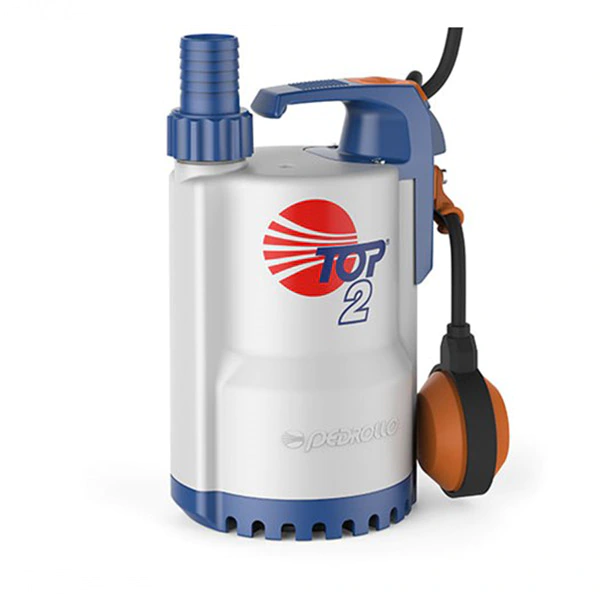

  • Pumps: 1x Pedrollo Top2 Automatic
  • Riser/Lid: 450mm X 150mm fixed riser – most 450mm inspection chamber lids fit
  • High Level Alarm Optional: Mains/internal li-ion powered wireless High Level Alarm
  • Dimensions: h: 625mm ø: 510mm
    Passage of suspended solids up to Ø 10 mm
