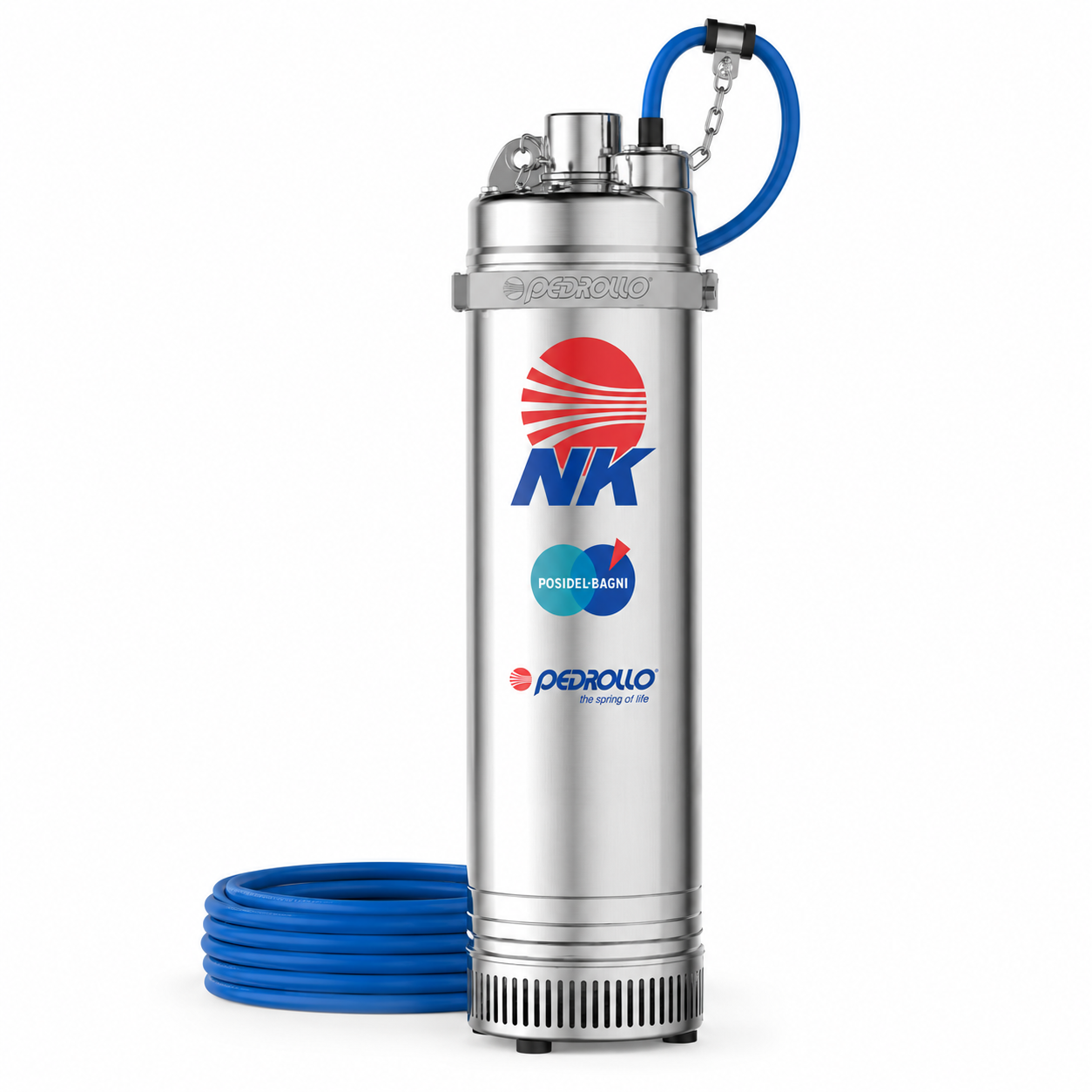

Pedrollo NK Single Phase Submersible Pumps

The NK-GE Single Phase Submersible Pumps with Float Switch are expertly designed for efficient and reliable use in a variety of water distribution needs.

Its durable construction and ability to handle clean water make it ideal for domestic, civil, and agricultural applications.

With the added benefit of pressure boosting, this pump is a valuable asset for gardens, allotments, and overall water distribution.

This pump is available in either single or three-phase.

CONSTRUCTION:

Stainless Steel AISI 304 External Sleeve, complete with a threaded delivery port in compliance with ISO 228/1
Stainless Steel AISI 304 Suction Filter
Stainless Steel AISI 304 motor sleeve
Noryl GFN2V Impellers and Diffusers
Stainless steel motor shaft EN 10088-3 – 1.4104
Complete with a 20 m long power cable
Power Supply: 230V Single Phase (230/1/50) or 400V Three Phase (400/3/50)
Ports: 1 1/4″

PERFORMANCE RANGE

Flow rate up to  160l/min (9.6 m³/h)
Head up to 95m

APPLICATION LIMITS

– Maximum liquid temperature 40°C
– Maximum sand content 50 g/m³ (with a sufficiently long power cable)
– 20m maximum immersion depth
– Continuous service S1
