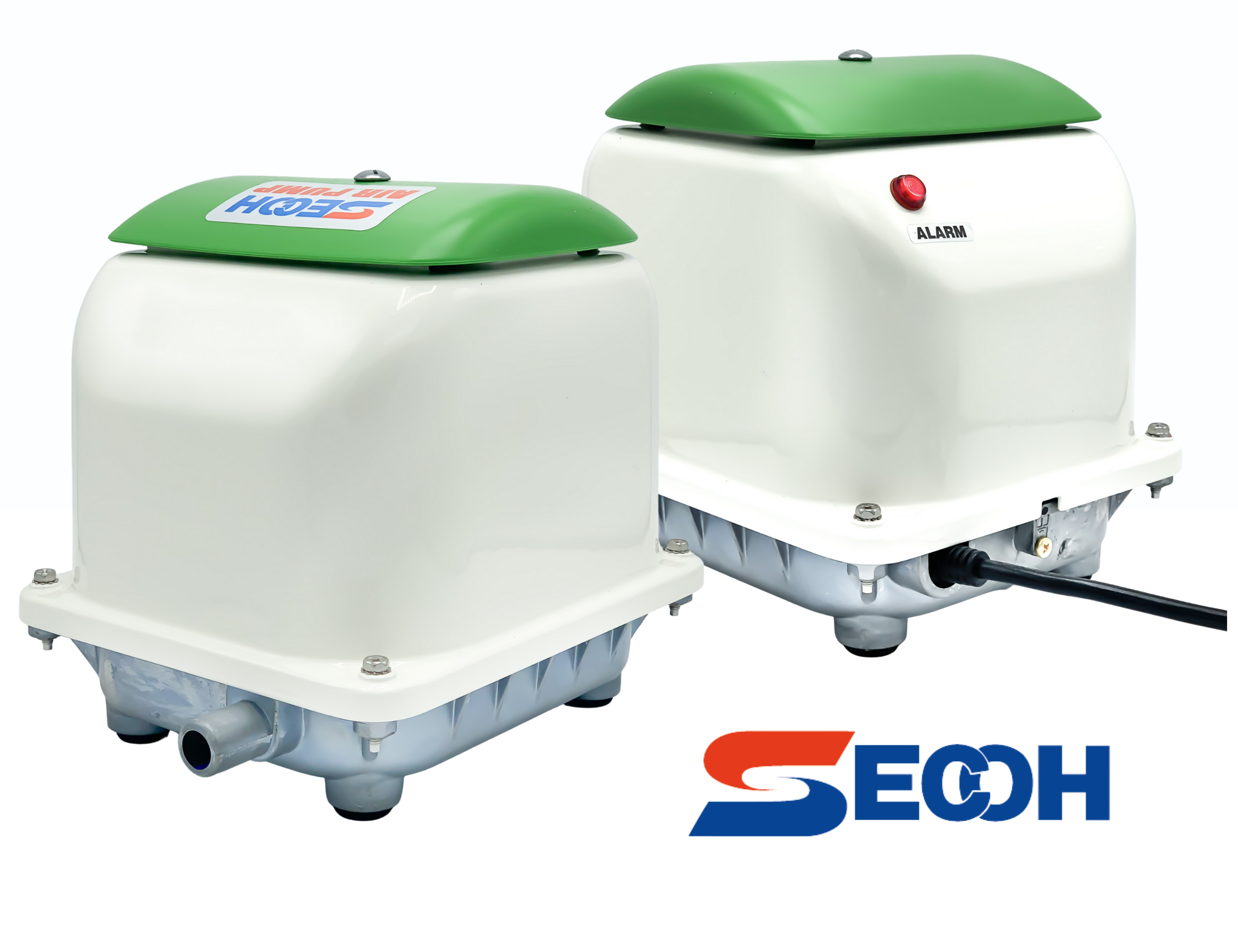

Secoh JDK-S-60 Single Series Diaphragm Blower (EL-S-60)

The JDK-S-60 Air Pump is a replacement for the Secoh EL-S-60. The JDK-S-60 is used in Klargester, MATRIX and Tricel sewage treatment systems along with aeration in ponds.

Install instructions for JDK60 Air Blower

 JDK-S-60 Specification

 2 Year Warranty

 Secoh Air Blower Service Check List

Specification

• Optimal Operating Pressure: 0.20 Bar
• Open Flow: 60 l/min
• Voltage: 230 VAC
• Maximum Power Consumption (at 180mbar): 40 W
• Frequency: 50 Hz
• Sound Level (at 1.5m): 38 db(A)
• Dimensions: 254 x 177 x 176 mm
• Connection: 19 ømm
• Net Weight: 4.5 kg

Features

The JDK models boast less energy consumption (up to 30% - depending on the application) and less overall dimensions (also by about 30%) compared to the SLL and EL series. This makes the class not only more compactly, but also lighter.

Long life expectancy
Motor and pump parts are combined in one single construction. The compact and light construction form and the simple mechanism guarantee a long and reliable period of operation.

High degree of efficiency
The principle of electromagnetic oscillation, which practically has no mechanical friction, minimises power consumption and provides a high degree of efficiency.

Low noise level
The soundproof casing and the muffler integrated in the tank base reduce operating noise.

Low vibration
Motor and pump parts are separated by a vibration-isolating rubber, so only low vibration consists.

Completely oil-free
The oil-free operation guarantees a dry and unadulterated air flow.

Pulsation-free air flow
Specially formed pump chambers and the muffler integrated in the tank base provide an air flow, which is practically pulsation-free.

Weatherproof
The SLL, EL and JDK series are rainproof and weatherproof. However, they should not be exposed to direct sunlight, rain or snow.

Universal service kits
For each model series service kits are available. They are vacuum-packed in aluminium foil for better and longer life/ storage.
