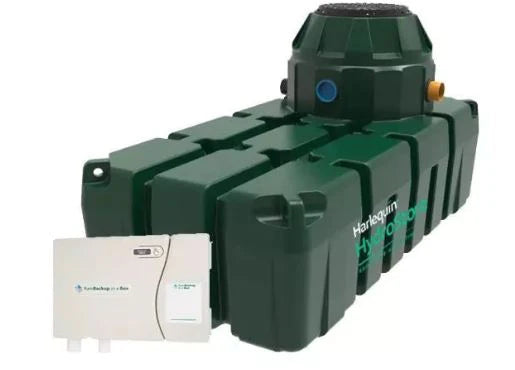

Harlequin HD1500 Home Harvest Direct

The 1500 litre Home Harvest Direct rainwater harvesting system is perfect for collecting and storing water for future use when water is scarce. The tank has a connection for a hose for irrigating lawns/gardens, washing cars and any outdoor water needs.

The tank is moulded in one piece from MDPE which makes it extra strong and non-corrosive. The system complies with EN 16941-1:2018 and Part G of Building Regulations in U.K.

Bonus feature the Harlequin Hydrostore Home Harvest is equipped with a ‘Backup in a Box’ rainwater distribution system which allows connection of the tank to a direct plumbing system to supply appliances such as toilets, washing machines and the garden. Once rainwater has been exhausted, the unit replenishes the storage tank with mains water.

 Harlequin HD1500 Specification Sheet

Harlequin HD1500 Product Drawing

Harlequin Rainwater Harvesting Systems Brochure

Features of the HD1500

• Moulded from durable medium density polyethylene material
• 110mm inlet, outlet and service connections
• Fully secured 450mm diameter pedestrian duty manhole cover Integrated filter with stainless steel mesh (size 0.7 x 1.7mm)
• Calmed inlet reduces turbulence to tank sediment, improving water quality
• Pressure sensitive submersible pump (turns off if no demand), complete with integral run dry protection
• Pump can deliver up to 3.5bar pressure, with a flow rate of 2500 litres per hour. Max head of 35m (nominal) and power rating of 800W.
• U-bend type overflow also acts as a rodent trap
• Supplied with a 25m coil of 25mm HDPE pipe and 1” pump connections
• Moulded-in handles for ease of lifting
• PE tank is lightweight, corrosion resistant and made from 100% recyclable material
