Our best-selling WRAS approved DAB ESYBOX MINI 3 can increase pressure to taps, showers, appliances and water from rainwater harvesting systems, delivering up to 80 litres per minute with a variable frequency drive.
The ESYBOX MINI 3 has a variable speed pump which automatically adjusts according to the demand to ensure maximum running efficiency, providing constant water pressure without surges and can save you 50% on running costs compared with traditional solutions.

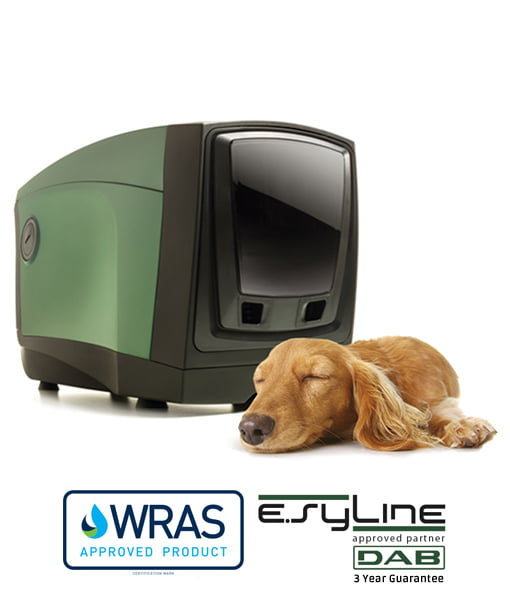

The compact ESYBOX MINI 3 can be installed horizontally, vertically or on a wall bracket (sold separately), and is designed to operate with ultra low running noise and minimal vibrations, one inch brass unions are supplied with the unit.
The ESYBOX MINI 3 cannot be connected directly to the mains water supply, it must be connected to a suitable break tank.
Key features:
- 3-rotor model ensures further noise reduction and energy consumption
- Wireless software updating
- Inverter technology draws the energy necessary according to the water requirements, saving up to 50% on running costs
- Quiet running booster pump – 45db(A) at one metre
- 439mm (H) 263mm (W) 236mm (D)
- Easy maintenance thanks to technical compartment, which allows access to the air vessel loading valve and non-return valve
- Supplied with a pair of one inch brass connection unions
- Optional wall bracket available
-
⚠ Must not be connected to incoming mains supply, break tank required
- WRAS Approval Number: 1601034
Technical data:

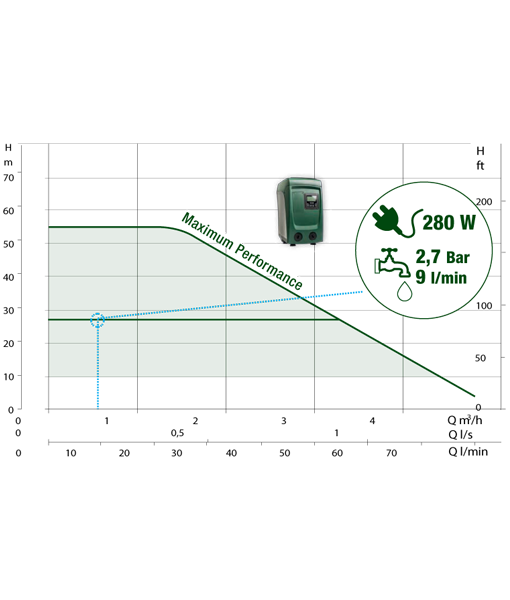

- Operating range: capacity up to 80 l/min; head up to 55 m
- Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral
- Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C
- Maximum suction depth: 8 meters
- Maximum ambient temperature: +50°C
- Maximum operating pressure: 7.5 bar (750 kPa)
- Motor protection rating: IPX4
- Insulation class: F
- Installation: Horizontal or vertical fixed position
