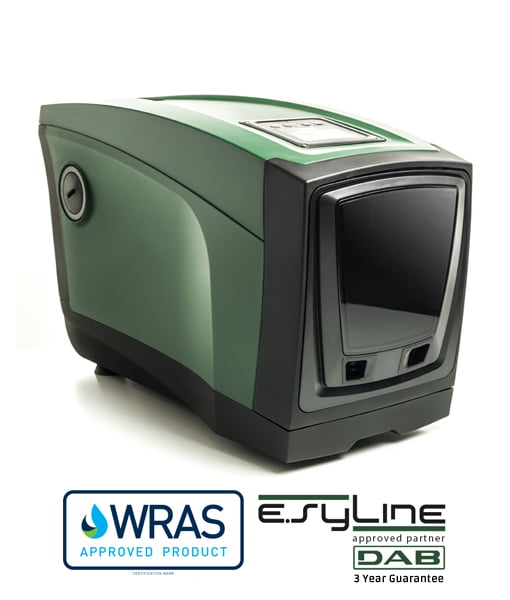

DAB ESYBOX Electronic Cold Water Booster Pump

DAB ESYBOX Electronic Cold Water Booster Pump

Regular price Ā£864.00
Regular price Sale price Ā£864.00
Special Offer Sold out
Shipping calculated at checkout.

Prices are EX VAT unless stated otherwise

WRAS approved, our best-selling DAB ESYBOX can increase the water pressure and flow rate to taps, showers, appliances, garden hoses and rainwater harvesting systems.

With the DAB ESYBOX, the flow is automatically adjusted according to demand, allowing constant water pressure and maximising efficiency without surges, saving you 50% on running costs compared to traditional solutions.

Whisper-silent, the ESYBOX can be installed horizontally or vertically, including on the ESYWALL bracket (sold separately) or on theĀ ESYTANK with integrated ESYDOCK, one inch brass unions are supplied with the unit.

The DAB ESYBOX cannot be connected directly to the mains water supply, it must be connected to a suitable break tank, such as theĀ DAB ESYTANK.

Key features

  • Inverter technology only draws the energy necessary according to water requirements, saves up to 50% on running costs
  • Whisper quiet operation, 43dB(A) in standard use
  • 565mm (H) 265mm (W) 352mm (D)
  • Easy to install and maintain, technical compartment allows access to the expansion vessel (2 litre) and the tools needed for maintenance
  • Bluetooth connection to link an additional ESYBOX when used in series, up to four units can be linked
  • Supplied with a pair of one inch brass connection unions

Downloads


Technical data

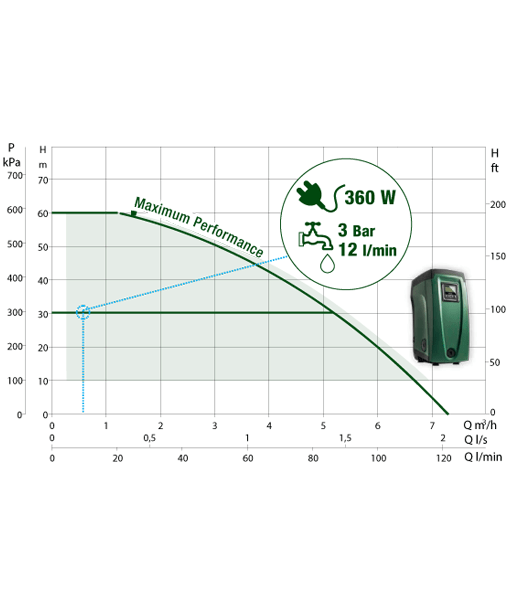

  • Operating range: capacity up to 120 l/min; head up to 65 m
  • Max. operating pressure: 8 bar (800 kPa)
  • Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral
  • Max. suction depth: 8 meters
  • Liquid temperature range: from 0Ā°C to +35Ā°C for domestic use for other use: from 0Ā°C to +40Ā°C
  • Max. ambient temperature: +50Ā°C
