Triton

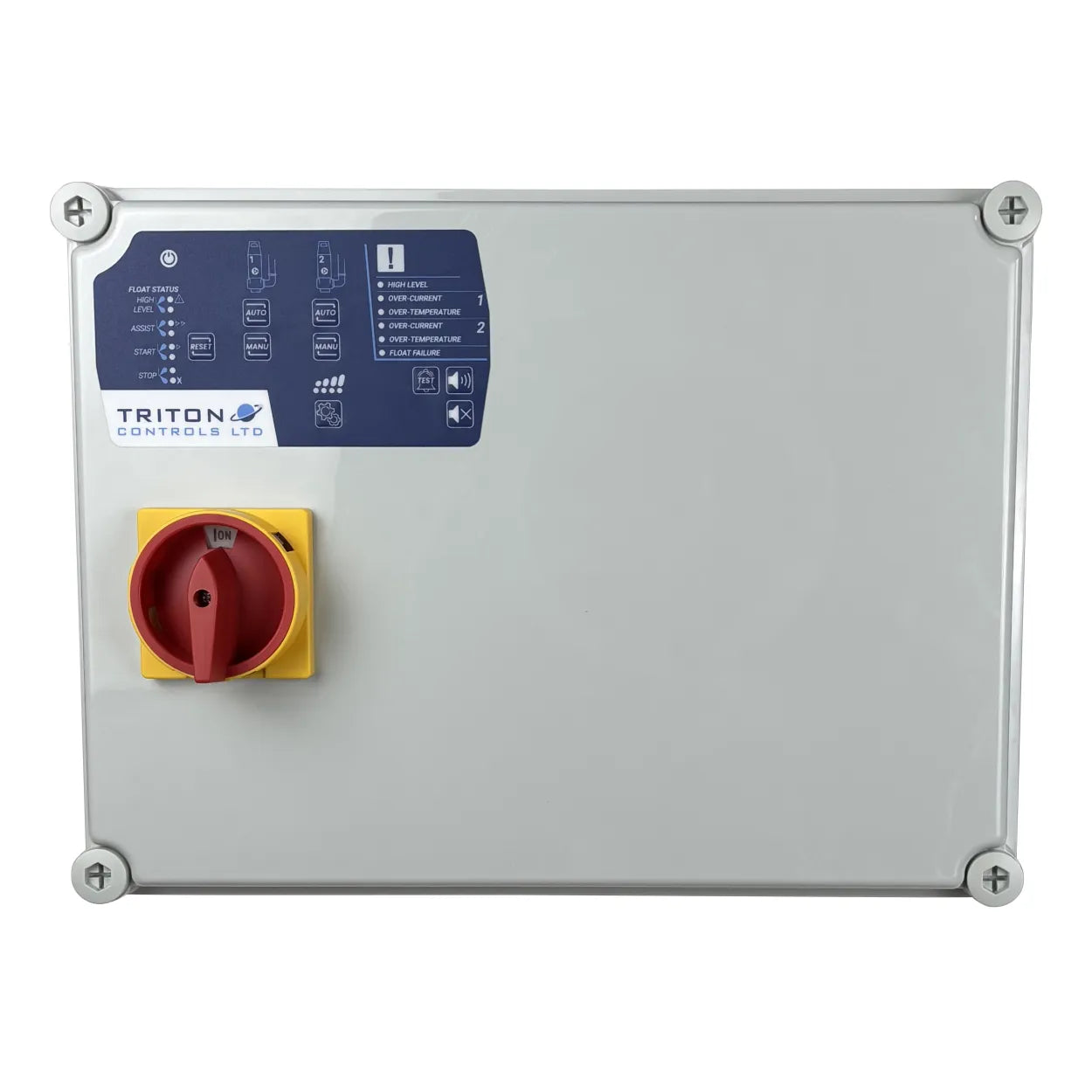

Triton LR40 Twin Pump Control Panel

Name: Triton LR40 Twin Pump Control Panel
Brand: Triton
Price: 320.0 GBP
Availability: InStock

£320.00

Special Offer Sold out

Shipping calculated at checkout.

Prices are EX VAT unless stated otherwise

Model Basic Basic GSM Battery back up Battery back up with GSM

Product variants

Quantity

The LR40 is Triton Controls dual pump control panel with a built-in alarm for domestic or industrial pumping stations.

The dual pump controller comes in a range of 4 products

Suitable for either single-phase or three-phase power
Ideal for clean and wastewater applications
Lockable interlocked mains isolator
Inbuild Audio and visual alarm
Pump operating/tripped and error indicators
Auxillary alarm output for an external beacon or buzzer/siren
Automatic alternating pump start
Pump protection, including pump over-current shutdown & pump over-heating shutdown
Simple installation with large terminal blocks for input/output wiring

Supply voltage	230Vac I/III or 400Vac III -20% +30% 50/60Hz
Supply voltage wiring size (max)	16mm²
Pump current range	1-12A
Pump output wiring size (max)	12mm²
Overload setting (Imax)	Settable between 1A to 20A
Float switch supply voltage	5Vdc 10mA
Float switch and alarm output wiring size (max)	10mm²
Pump Protection	Overcurrent / Over-temperature / alternating pumps
Alarm output	10A 250Vac or 125Vdc isolated relay output SPDT
Alarm acoustic output	103dB 3kHz 12Vdc piezo buzzer
Auxiliary alarm output	12Vdc 500mA
IP rating	IP65
Size	340mm x 300mm x 120mm
Weight	3.7kg
Operational temperature range	-10°C to +55°C

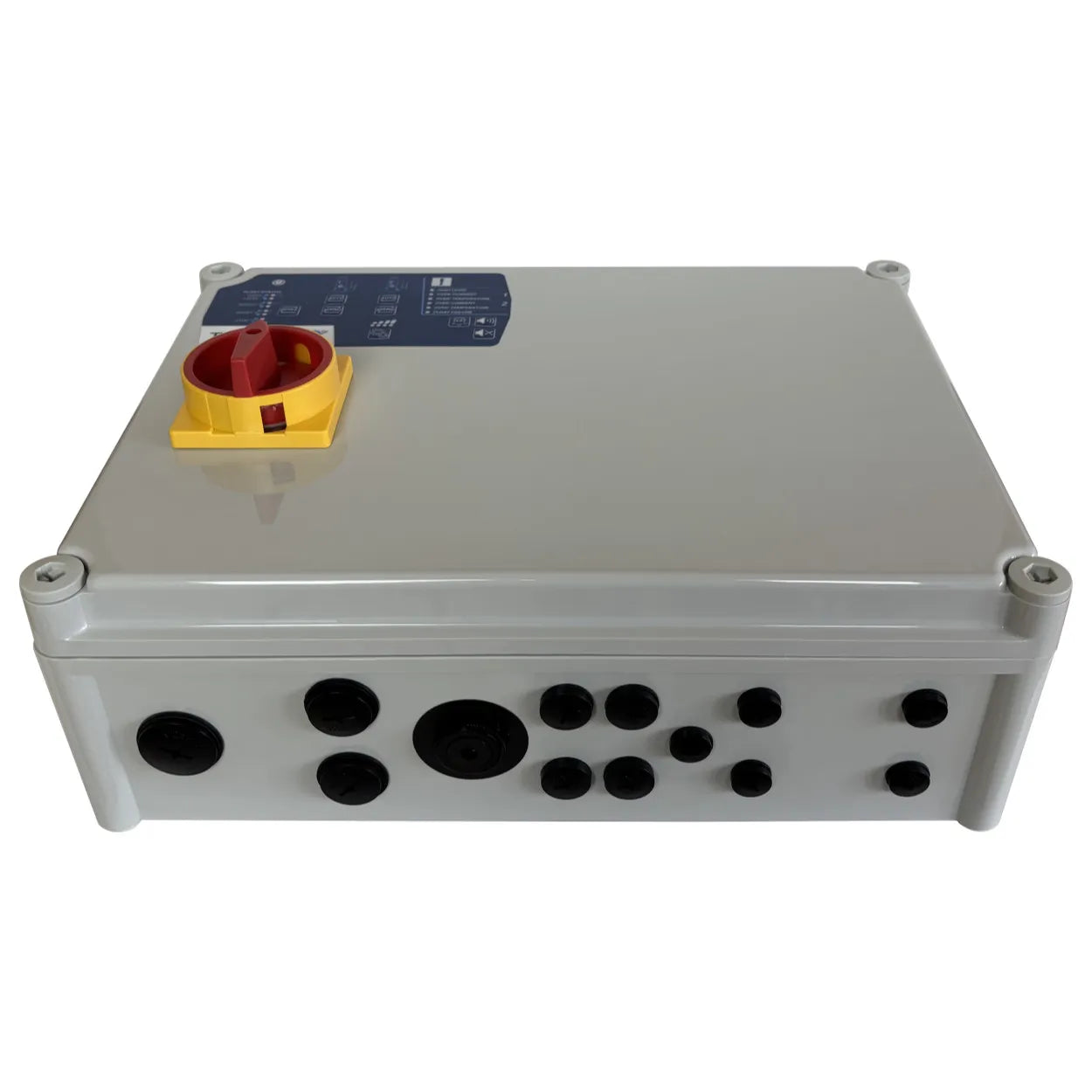

Gland configuration	Supply 1 x M25 / Pumps, inputs & outputs 6 to 9 x M16
Back up battery*	The alarm system is operational for >48h
