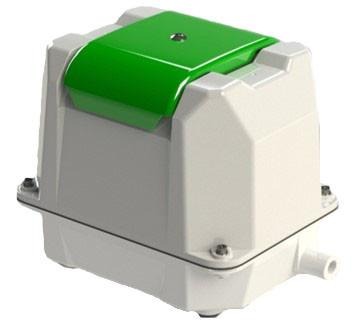

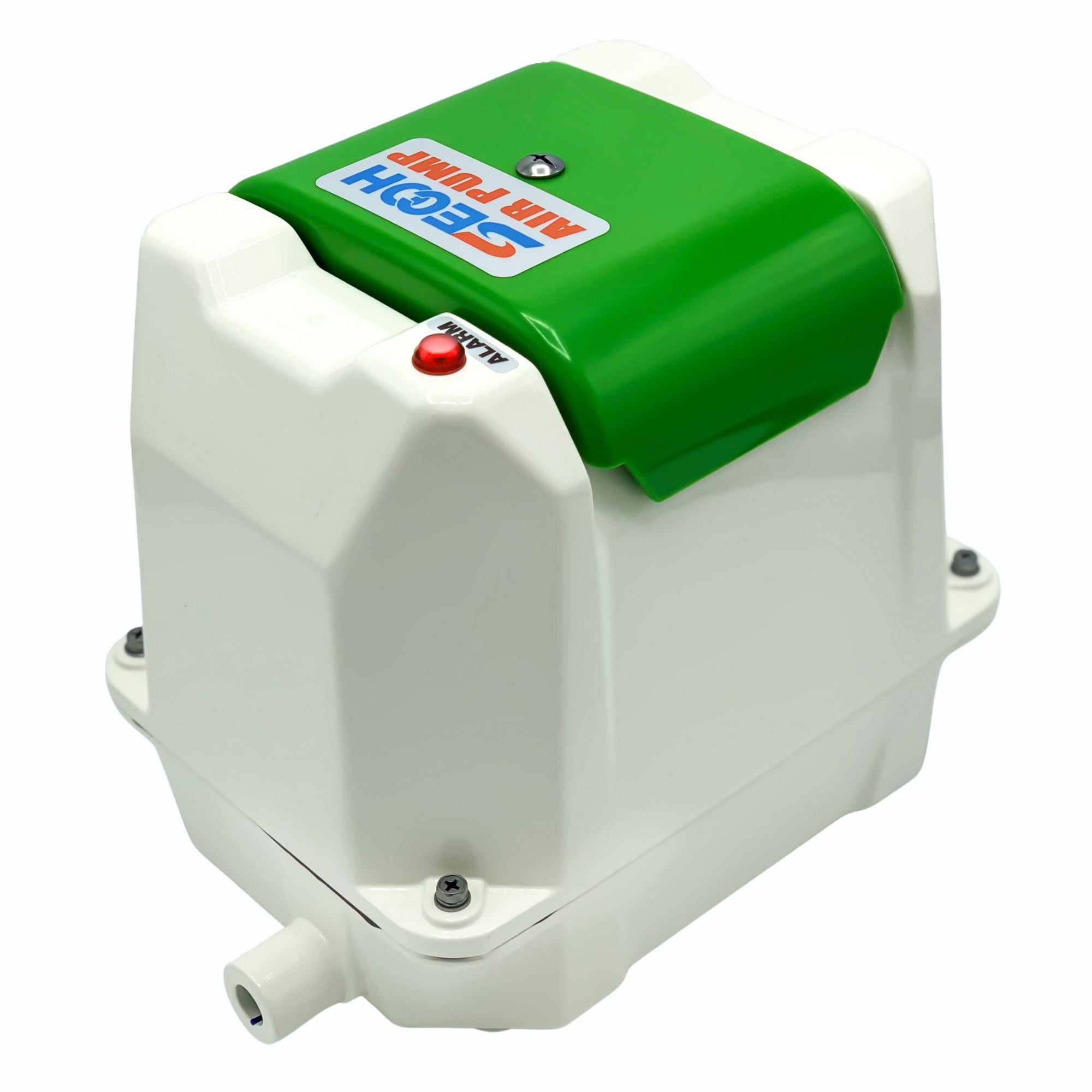

Secoh JDK-S-150 Single Series Diaphragm Blower (EL-150)

 The JDK-S-150 is a direct replacement of the EL-S-150 and EL-150w and features less energy consumption (up to 30% - depending on the application) and less overall dimensions (also by about 30%) compared to the SLL- and EL-series. This makes the class not only more compactly, but also lighter. The JDK-S-150 also comes with a pre-set pressure relief valve.

Install instructions for JDK-S-150 Air Blower

 JDK-S-150 Specification

 2 Year Warranty

 Secoh Air Blower Service Check List

Long life expectancy
Motor and pump parts are combined in one single construction. The compact and light construction form and the simple mechanism guarantee a long and reliable period of operation.

High degree of efficiency
The principle of electromagnetic oscillation, which practically has no mechanical friction, minimises power consumption and provides a high degree of efficiency.

Low noise level
The soundproof casing and the muffler integrated in the tank base reduce operating noise.

Low vibration
Motor and pump parts are separated by a vibration-isolating rubber, so only low vibration consists.

Completely oil-free
The oil-free operation guarantees a dry and unadulterated air flow.

Pulsation-free air flow
Specially formed pump chambers and the muffler integrated in the tank base provide an air flow, which is practically pulsation-free.

Weatherproof
The SLL, EL and JDK series are rainproof and weatherproof. However, they should not be exposed to direct sunlight, rain or snow.

Universal service kits
For each model series service kits are available. They are vacuum-packed in aluminium foil for better and longer life/ storage.

• Water treatment and environmental technology
• Aquaculture
• Medical and health technology
• Aeration of fuel cell stacks
• Aqua-air-lights and design pillars

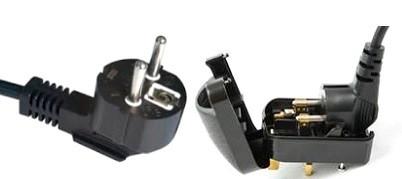

Please note: The Secoh S-series air blowers come with a standard EU plug which will require an adaptor (this can be purchased separately to be delivered with the blower).
