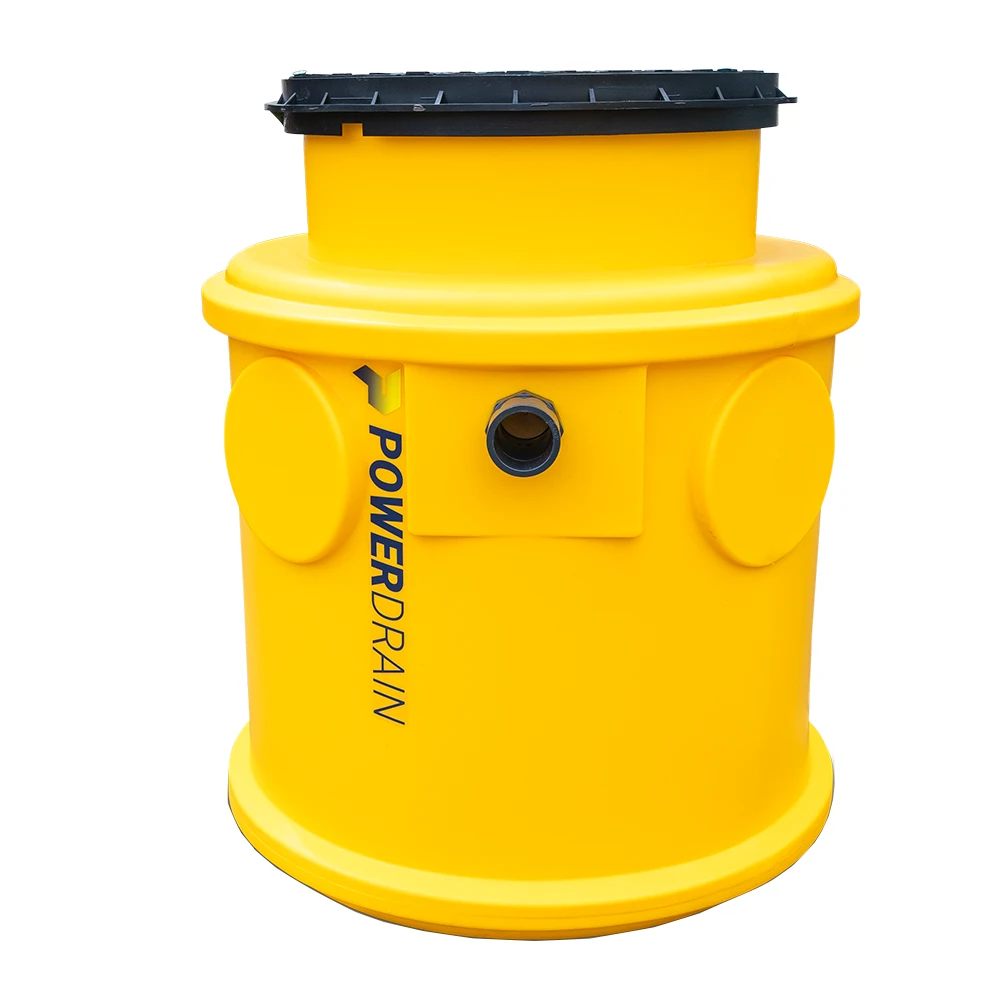

Pedrollo Powerdrain Foul Single Pump Station for Dirty Water 240ltr

The Single foul packaged pump stations are designed to collect wastewater from below-ground extensions, garden rooms, small conversions.

The VX pump range is designed to remove both clean and dirty water. Common applications would be to collect foul water from a W.C. sink, shower, kitchen or utility room and then discharge it to the main waste pipe or pumping sewage up to septic tanks and sewage treatment plants.

Other applications include the removal of rainwater collecting in the basement.

The Powerdrain range has been designed to ensure an easy and trouble-free installation.

PERFORMANCE RANGE
Flow rate up to 550 l/min (33m³/h) Head up to 9m
Passage of suspended solids up to Ø 50 mm

Key Features:

• 240 litre Sump Chamber

• 450mm inspection chamber frame and lid

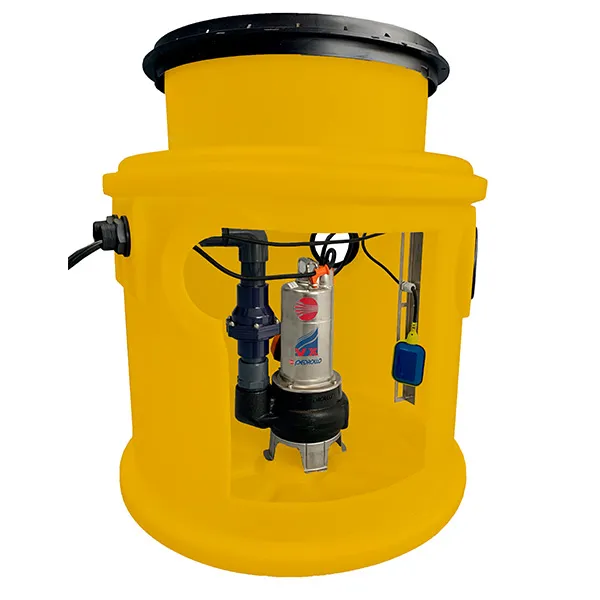

• 1 x Pedrollo VXm10/50 automatic pump with fully assembled discharge pipe work

• Discharge hole in chamber pre-drilled

• Inlet holes need drilling

• Full height float switch slide

• 50mm solids handling for sewage with Vortex Pumps

Specification:

• Chamber Material: MDPE

• Chamber Max Volume: 240 Litres

• Non-return Valve: Quiet operation EDPM swing check valve

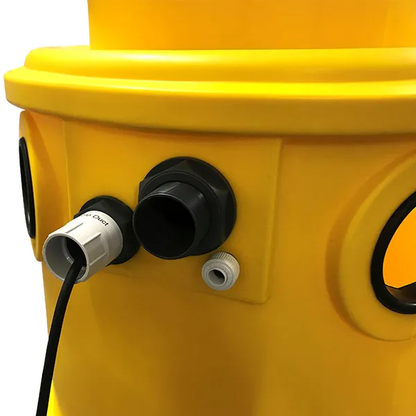

• Discharge Connection 2” BSP male

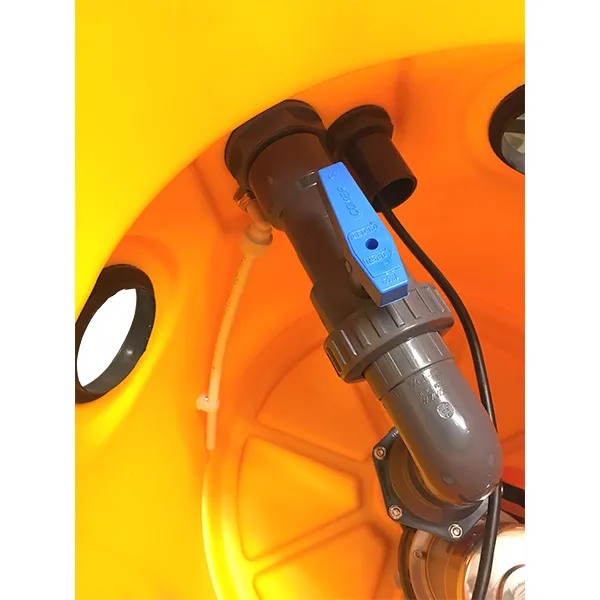

• Internal Pipework and fittings: All manufactured to EN1452-2/3, ISO161/1, BS21, DIN2999, ISO7 – Note threaded fittings are rated at 12 Bar.

• Cable Duct Pipework: 1.5″ BSP Male 16 Bar fitting (optional 40mm waste adaptor supplied)

• Pumps: 1x Pedrollo VXm10/50 Automatic

• Riser/Lid: 450mm X 150mm fixed riser – most 450mm inspection chamber lids fit

• Float Switch: Full length aluminium flat switch slide for full chamber depth adjustment

• Dimensions: h: 800mm ø: 740mm
